产品库存号：
- 产品库存号：DGTN-16

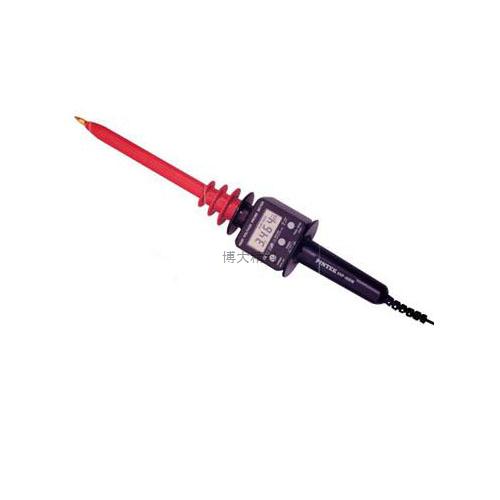

产品名称：HVP-40DM高压探棒
技术参数：
DC 40KV CAT II Pollution 2.
2000M Impedance.
3999 LCD display.
Accuracy 1.0% full range.
T.C. 100 ppm/oC
400V/4KV/40KV, 3 range.
Resolution 0.1V/1V/10V.
PEAK HOLD, Auto power off.
CE, TUV GS, UL, CUL, IEC1010
SPECIFICATIONS ( 20 ∮ 5, RH < 80% )
! WARNING !
? Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
Input impedance:2000M
Maximum operation voltage:40KV DC , CAT II , Pollution 2
Polarity:Positive / Negative
Display:3999 digital, LCD
Accuracy:Full Range ∝ 1.0% ∮ 2 digital
Temperature Coefficient:∝ 100ppm /
Maximum loading Current:∝ 20A
Maximum loading power:∝ 0.8 watt
Voltage Range:40KV / 4KV / 400V / 3 Range
Voltage resolution:10V / 1V / 0.1V
Power source:9V / 006P, IEC6L R1, NEDA 1604A
Low battery Indicate:∝7.3V Auto Indicate
Battery Life:About 200hr ( ALKALI )
Auto power off:About 30 mim
PEAK HOLD:≠ 400 ms
Sampling:4 Sampling / sec
Operating temperature:0 ~ + 50
Storage temperature:- 20 ~ + 70
Ground lead length:90cm ( 35 " )
Dimensions:420 L x 80
Weight:360g
