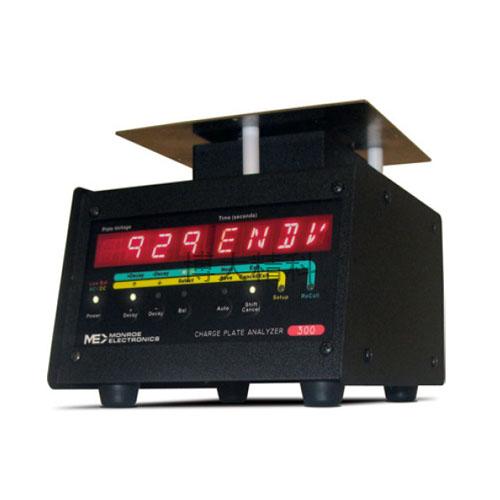

产品名称：ME-300平版式静电测试仪

产品介绍：

Features:
• Measures, displays and stores last test
data, including discharge times, peak
offset voltages, and average offset
voltage.
• Easiest, most reliable way to check effectiveness of all ionization-type static control systems
• Meets Requirements of ANSI/ESD
STM 3.1
• Removable, cable-connected ion
collecting plate probe permits precise
positioning and remote monitoring
• Separate time and voltage displays for discharge time test
• Recorder output for permanent records and unattended operation
• One range measures from 0 to ±1kV
• Dramatically demonstrates induced charges and human body potential
• AC and battery operation
• Perform long-term balance tests


Specifications:
Charger: ±1050 volts, selectable polarity

Fieldmeter:Range: 0 to ±1300 volts on display 0 to ±1800 volts analog output1 volt resolution

Accuracy: ±2% of reading ±2V + zero offset

Bandwidth: 6Hz

Analog output: 1/1000 of plate voltage, ±3%

Trip Points: Start Voltage: 1000 volts fixed Stop Voltage: 10 to 990 volts in 1V steps

Charge Plate:Size: 6”x6” (15cm x 15cm)

Capacitance: 20pf, ±10%

Plate selfdischarge: Less than 100 volts within 5 minutes (< 60% R.H.)

Timer:Range: 0.1 sec to 999.9 sec Resolution: 0.1 sec Accuracy: 0.1 sec

PowerRequirements: 100 to 220 VAC nominal line voltage; less than 5 Watts.

Battery Life: >8 hours

Dimensions: Approx 6½”W x 8½”D x 6H”

Weight: Approx 5.2 lbs.
